wolunstart remote start Electric Starter (E-start) 150325-A-10A
Product Manual:

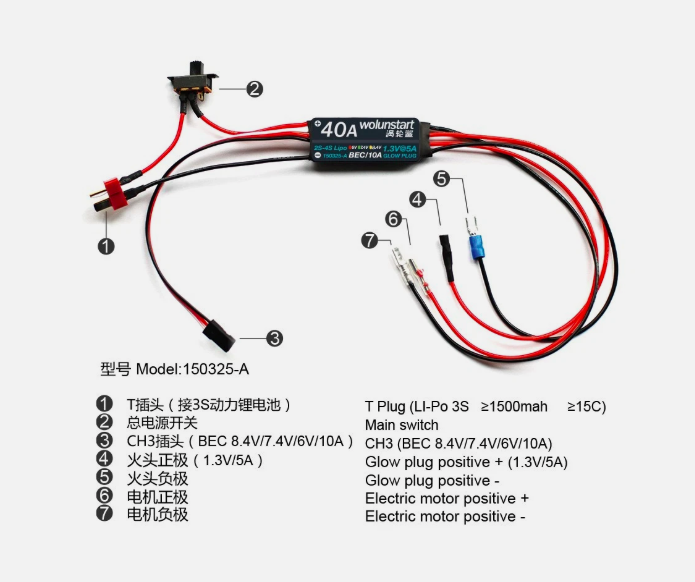

Wolunstart Remote Control Starting System / Electric Starter (E-start) 150325-A-10A
1. Compatibility: This control harness is specifically designed for brushed DC motor starters. It is perfectly compatible with the brushed motor electric starting systems used in TRAXXAS and LOSI models.
2. Power Supply & Remote Start: It supports using a 3S Lithium Polymer (LiPo) battery to power the entire vehicle and enables remote starting via the transmitter. (Note: A transmitter with a 3rd channel function is required, and the remote start feature will occupy Channel 3 / CH3).
3. Battery Specifications: The required power LiPo battery parameters are as follows: Voltage 11.1V; 3S (3 cells connected in series); Capacity ≥ 2000mAh; Discharge Rate ≥ 20C.

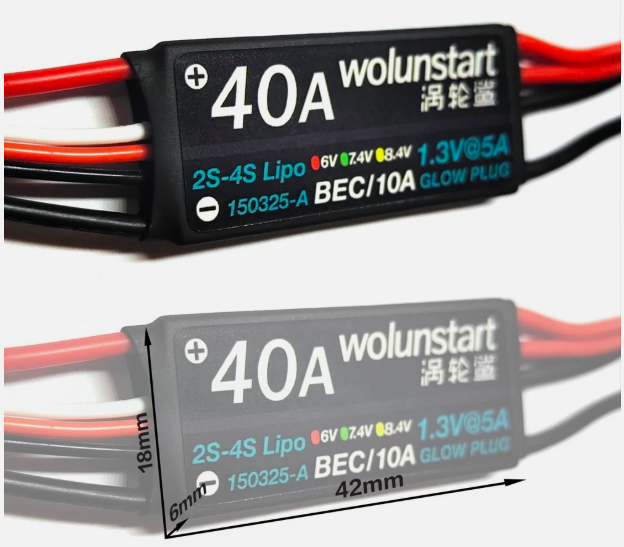

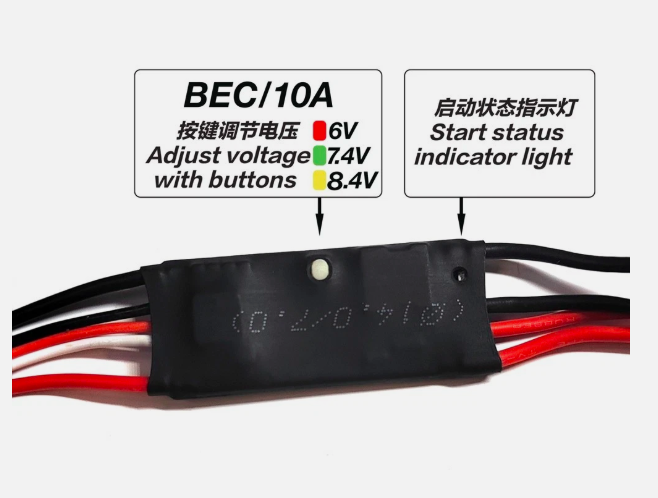

4. Built-in BEC: The control harness features a built-in BEC module, providing three adjustable output voltage options: 6V, 7.4V, and 8.4V, with a maximum output current of 10A (@10A). The BEC will supply power to the vehicle’s receiver and servos.
5. Glow Plug Drive: Output voltage 1.3V, current 5A. (The glow plug is a dedicated pre-heating element for RC engines, used to heat the combustion chamber during startup).
6. Installation & Handling Precautions: To ensure safe and smooth operation, the control harness must not be tightly strapped with zip ties, squeezed, or pinched during the installation process.
By installing this integrated control harness, you will completely get rid of cumbersome handheld igniters and complicated starting procedures. With just a simple press of the CH3 channel switch on your transmitter, you can easily achieve remote starting for your nitro RC car!
